Alarm Bar
SKU: SN0010
Chain-suspended alarm bar that hangs from the ceiling near door frames and overhead openings. When struck by a forklift or load, it triggers an audible and visual alarm to warn operators instantly.

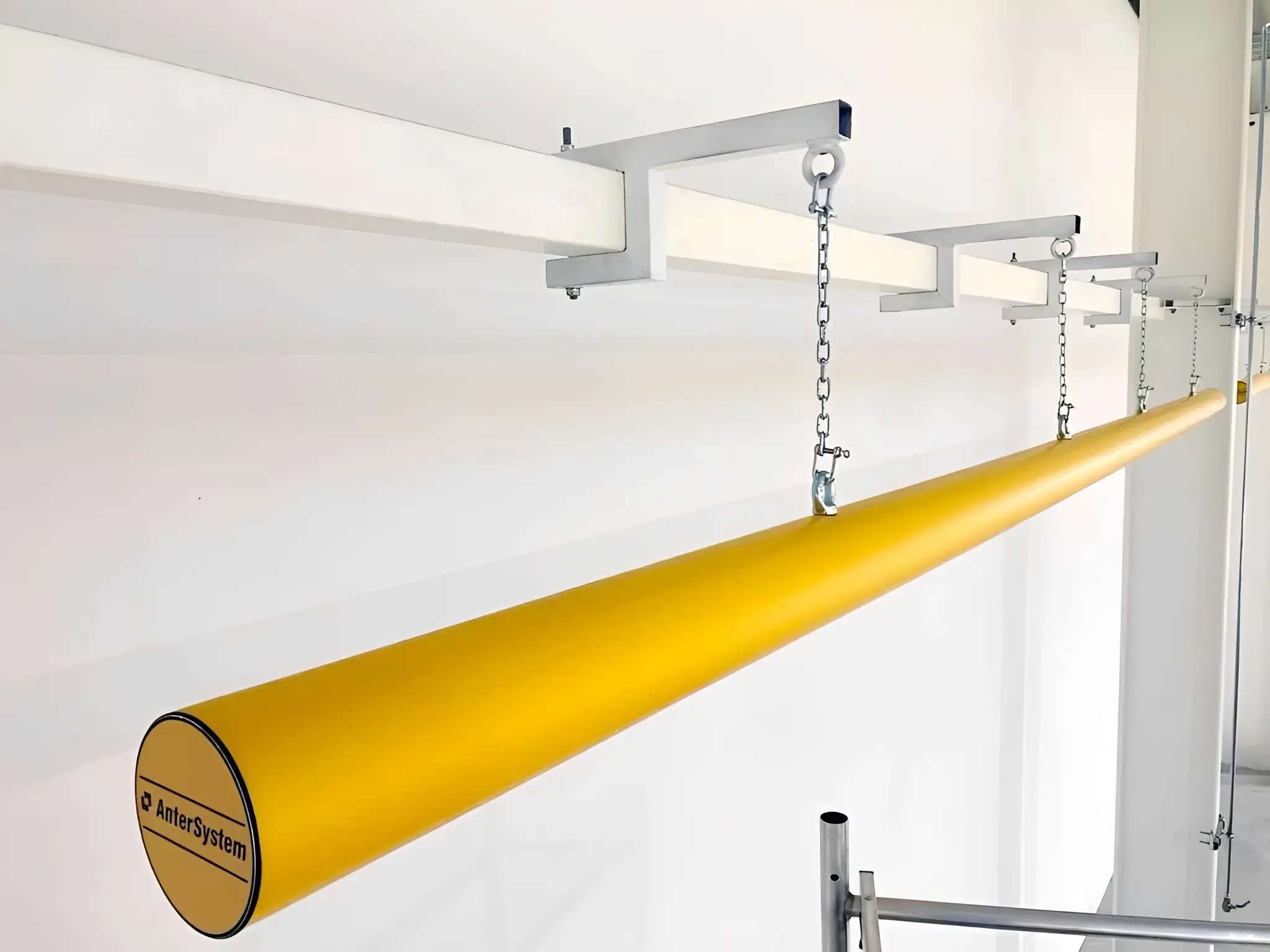

The SafeNivo alarm bar is suspended from the ceiling on chains near door frames and overhead openings. When a forklift or load strikes it, the bar triggers an audible and visual alarm — instantly warning the operator before the door frame or structure is damaged.
How It Works
The alarm bar hangs freely on chains at door and opening height. Any contact with a passing vehicle or load sets off a loud alarm and flashing light. It is designed as a warning device — it does not need to absorb the impact, so even a light touch is enough to raise the alert.
Key Features
- Chain-suspended from the ceiling — quick and easy to position
- Audible and visual alarm triggered on contact
- Instant warning before door frames or structures are damaged
- High-visibility finish for clear hazard marking
- Lightweight design — alarms on even a light touch
Applications
- Door frames and overhead doors
- Low-clearance entrances and exits
- Loading docks and warehouse doorways
- Mezzanine and racking openings
- Cold storage entrances
Benefits
By raising an instant alarm on contact, the bar alerts operators before a small knock becomes serious structural damage — improving awareness and protecting door frames and openings without interrupting traffic flow.
Specifications
| Diameter | Φ125 mm |
| Length | 500–5000 mm (customizable) |
| Color | Orange-yellow (RAL 1003) |
| Protection Rating | IP50 (waterproof & dustproof) |
| Certifications | CE / CCC |
| Power Supply | 220VAC, 10W |
| Backup Battery | 12V rechargeable, 5000 mAh (standby 180 days, battery life 2 years) |
| Overcharge Protection | Yes |
| Power Switchover | Automatic to battery when AC supply is cut off |
| Indicator Light | White when on / red flashing when battery low / off when powered off |
| Voice Alarm | 85 dB |
| Buzzer | 100 dB |
| Warning Light Strip | LED, red & white dual color, 68 lm/m |
| Low-Battery Alarm | Voice prompt "Low battery, please check the power supply", repeated every 2 hours (can be disabled via remote) |
| Remote Control | Universal remote, effective within 3 m |
| STRUCTURE | |
| Pole Body | Imported high-molecular polymer, multi-layer extrusion — UV-resistant, chemical-resistant, scratch & stain resistant, reinforced flexible mesh inner layer |
| Hanging Rope | Stainless steel 304 wire rope |
