Laser Line Light
SKU: SN0013
High-power laser line light that projects a bright single line onto floors, walls and surfaces for clear boundary and aisle marking. Available in red, green, blue and yellow with multiple beam angles for distances up to 20 m.

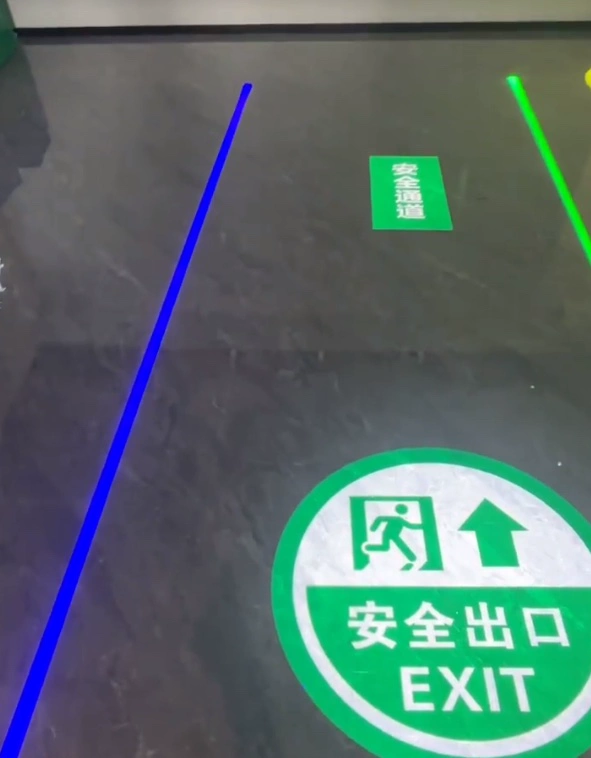

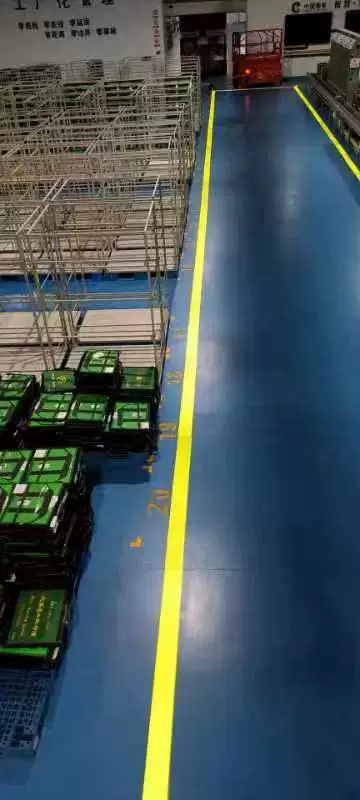

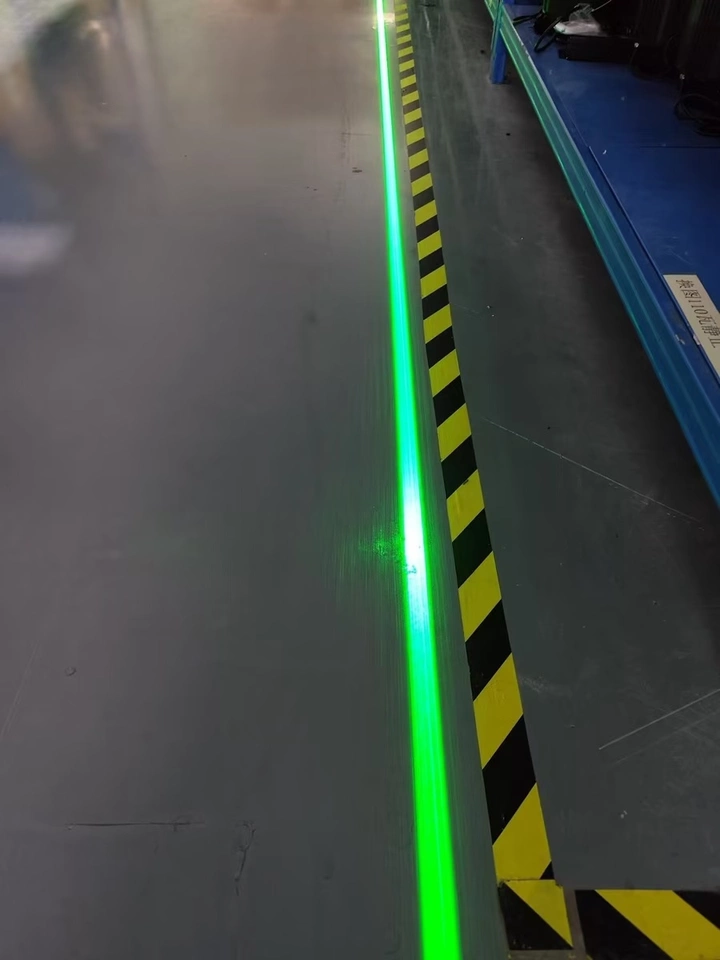

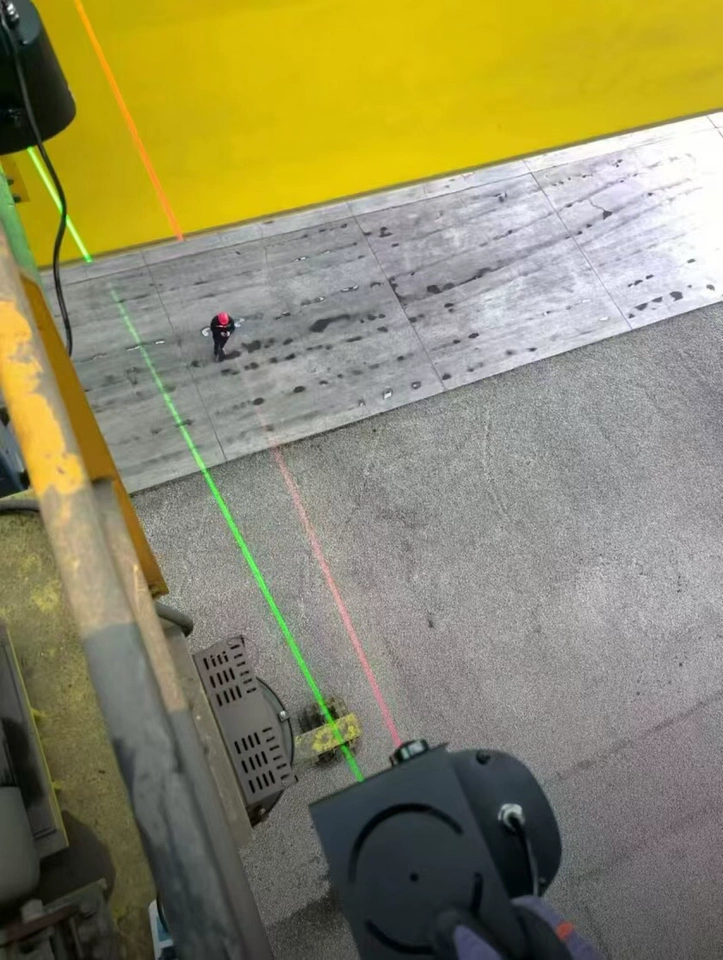

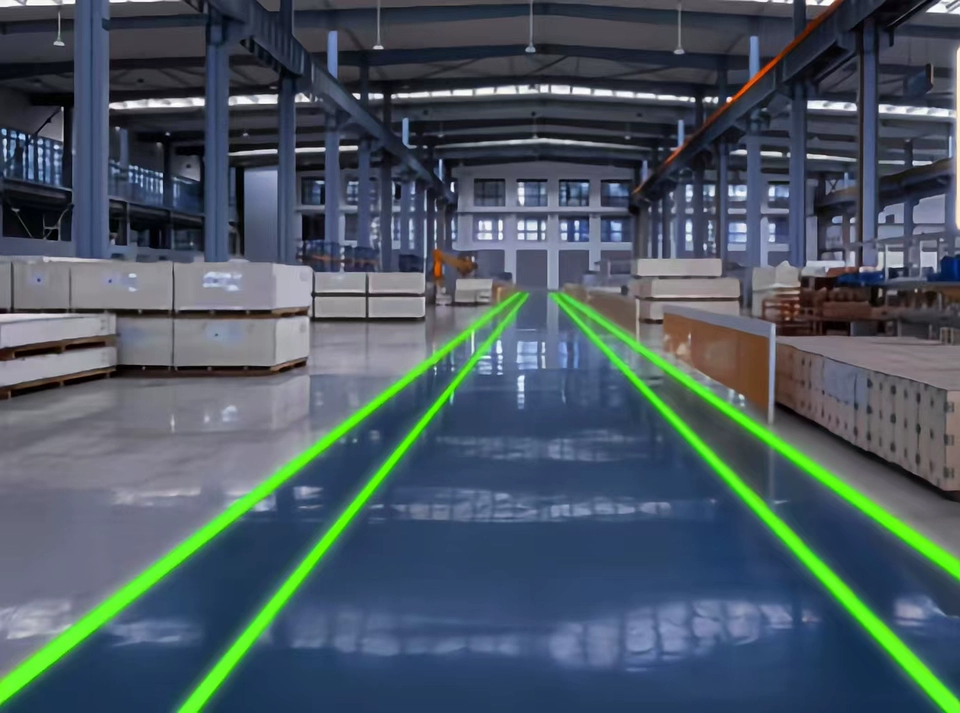

The SafeNivo laser line light projects a bright, sharp single line onto floors, walls and surfaces — ideal for marking aisles, boundaries and safety zones in warehouses, factories and logistics facilities. Available in red, green, blue and yellow, it delivers clear visual guidance even in bright environments.
How It Works
A high-power laser passes through an optical lens to project a crisp one-line beam over a distance of 3 to 20 metres. Choose from five beam angles to match your mounting height and coverage area, and select the color that best suits your marking needs.
Key Features
- Laser power from 15W to 35W for bright, long-distance projection
- Beam angles: 45° / 60° / 75° / 90° / 110°
- Colors: red, green, blue or yellow
- Projection distance up to 20 m
- 10,000-hour light source lifespan
- IP65 waterproof & dustproof rating
Applications
- Warehouse aisle and boundary marking
- Forklift and pedestrian traffic lines
- Loading dock and parking alignment
- Factory production line marking
- Hazard zone and safety line projection
Benefits
Laser lines stay sharp and visible without paint or tape, need no re-marking, and can be repositioned instantly — a low-maintenance way to keep traffic lanes and safety zones clearly defined.
Specifications
| Input Voltage | AC220-240V, 50/60Hz |
| Laser Power | 15W / 25W / 30W / 35W |
| Light Source Lifespan | 10,000 hours |
| Beam Angle | 45° / 60° / 75° / 90° / 110° |
| Projection Distance | 3–20 m |
| Imaging System | Optical lens |
| Effect | Single line (one-line) |
| Color | Red / Green / Blue / Yellow (single color) |
| Control | Always on |
| Protection Rating | IP65 (waterproof & dustproof) |
| Laser Class | Class 3B |
| Operating Temperature | -20°C to +40°C |
| Dimensions | 153 × 166 × 206 mm |
